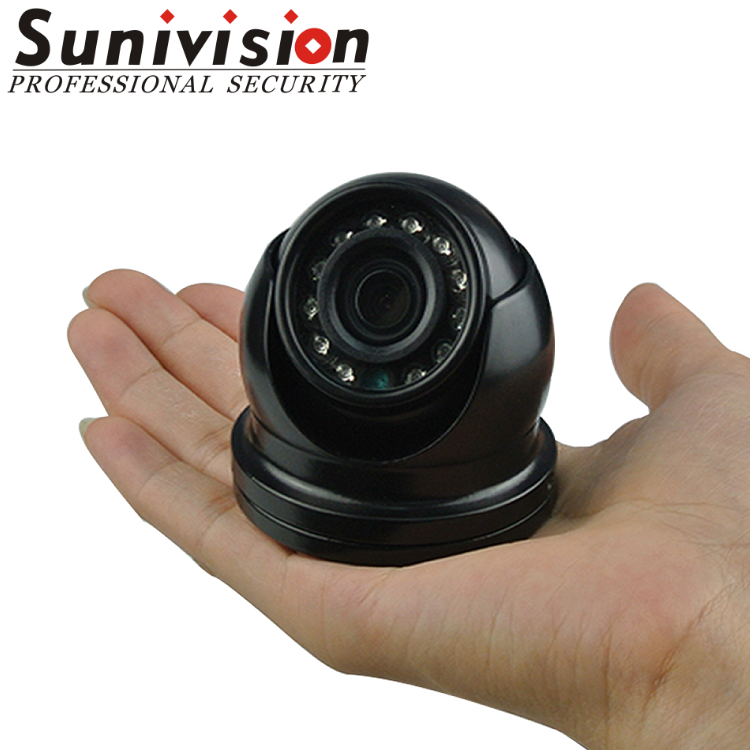

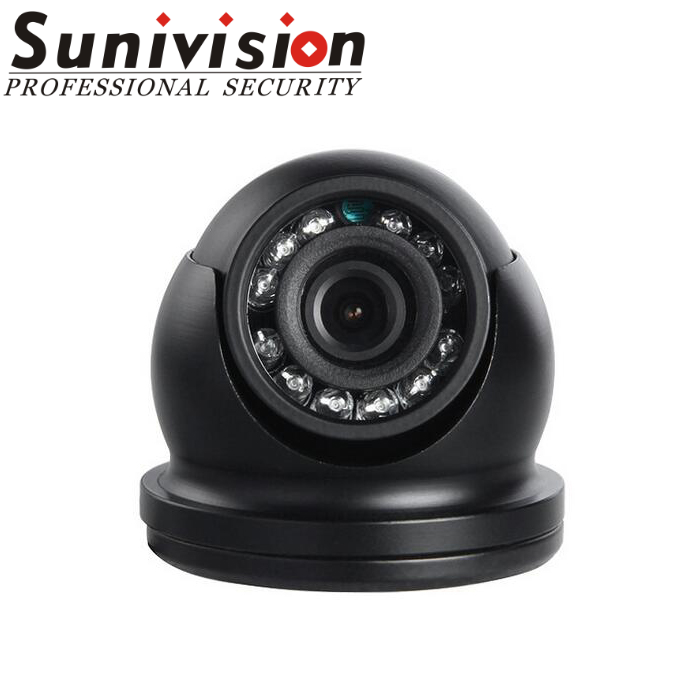

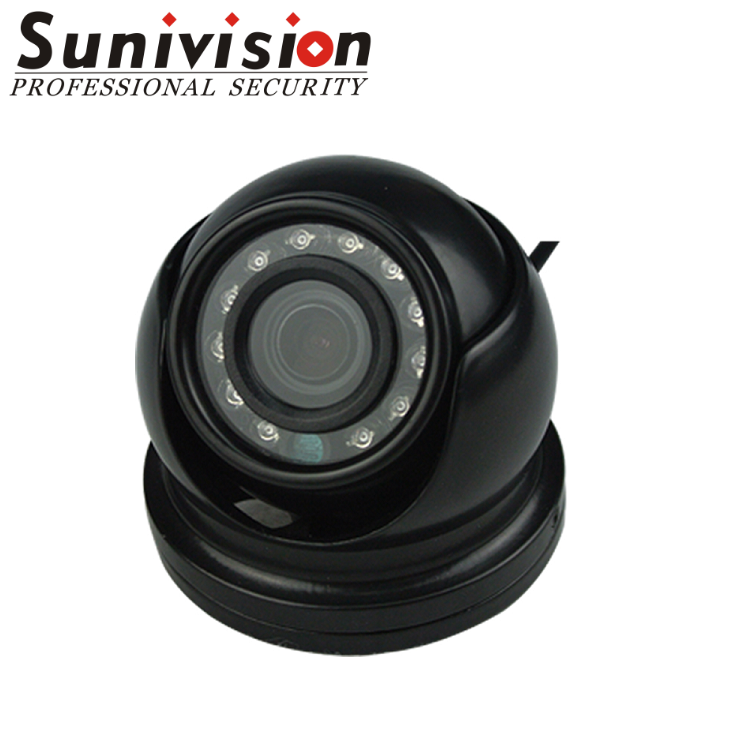

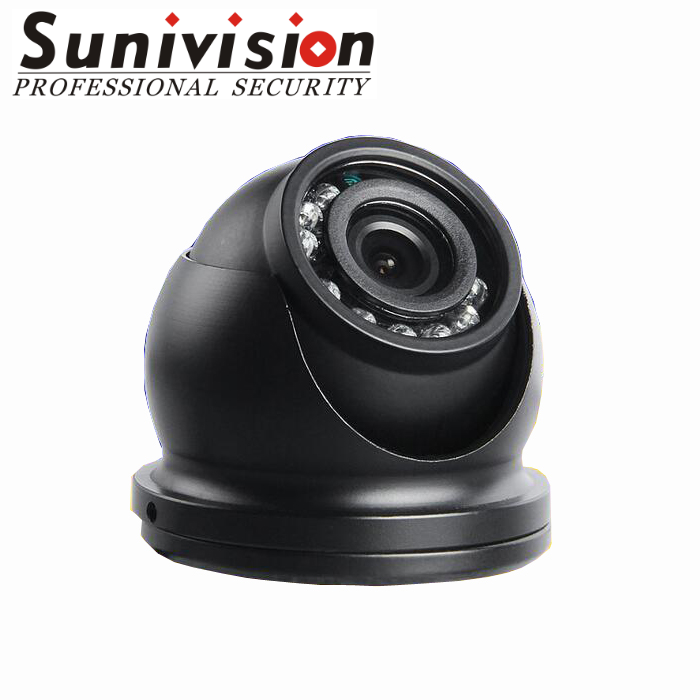

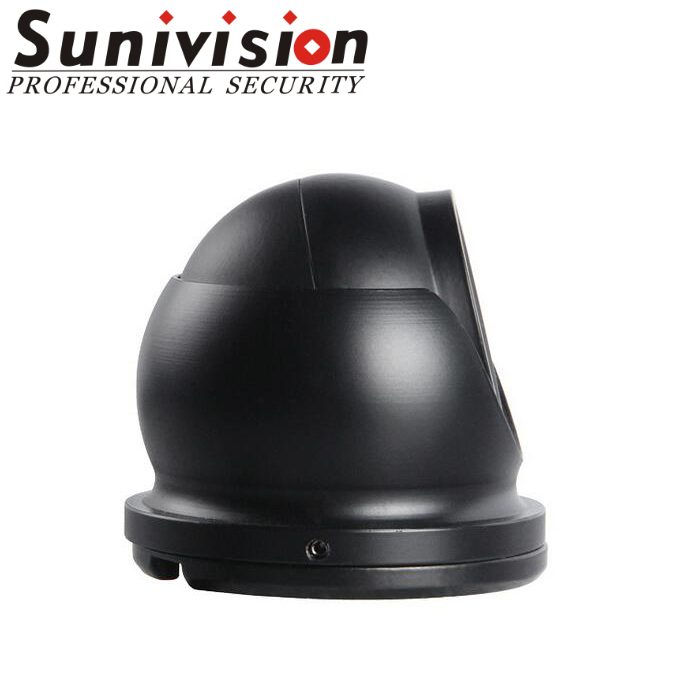

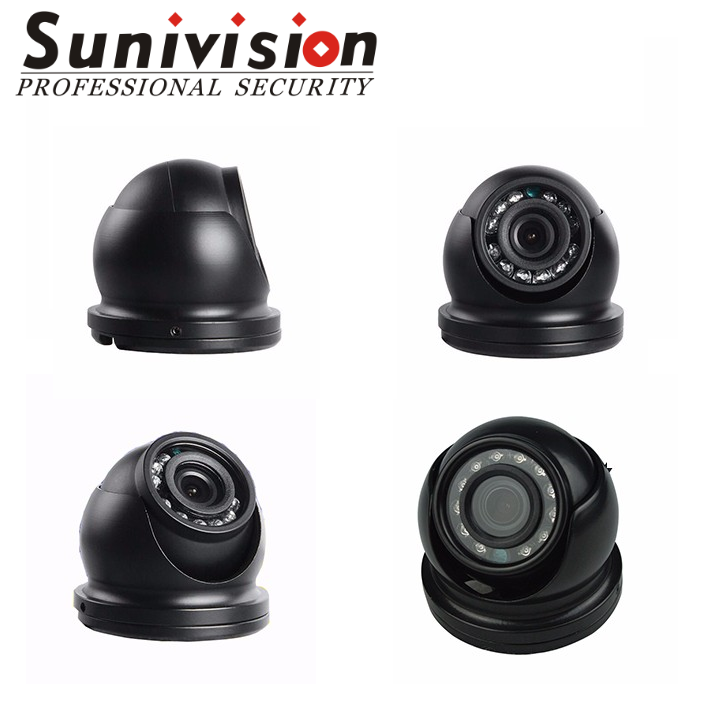

1080P IR mini Dome Security Car AHD CCTV Camera

Short Description:


Product Detail

FAQ

Product Tags

Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Sunivision/ OEM/HSX
Model Number:
AP-FB147SA27C-C
Type:
dome camera
Style:
Dome Camera
Sensor:
CMOS
Technology:
Infrared
TYPE:
ir mini dome camera
LED:
12pcs F 5 LED
Lens:
hd 3mp 2.8/3.6/6mm Fixed lens
Chipset:
XM320+SC2045
Effective Pixels:
1920(H) x 1080(V)
Image Resolution:
2MP
Sync System:
Internal Sync
Min. Illumination:
0.01Lux at F1.2(AGC ON),0Lux IR on
Day/Night:
Auto(ICR) cctv camera
Certificate:
CE ROSH
Special Features:
Waterproof / Weatherproof

1080P IR mini Dome Security Car AHD CCTV Camera

Product Description

FEATURE:

1. AHD HD 1080P 2MEGPIXEL CMOS 2000TVL  500METER TRANSMIT XM320A+SC2035

2. 2.8mm, 3.6mm.4mm,6mm,lens is optional.(cctv)

3. 12pcs ir up to 15m ir distance(cctv)

4. Casing is mental for outside also (cctv)





SPECIFICATION:

Image Device 1/2.8" 2 Megapixel CMOS  XM320A+SC2035
Effective Pixels 1920(H) x 1080(V)
Video Frame Rate 1920 X 1080@25 fps; 1920 X 1080@30 fps
Sync System Internal Sync
Min. Illumination 0.01Lux at F1.2(AGC ON),0Lux IR on
White Balance Auto White Balance
Electronic Shutter Auto
Day/Night Auto(ICR)
Video Output 1-channel BNC HDCVI high definition video output
Transmission Distance 1640ft
Power DC12V 300mA
Lens 3.6mm
LED Quantity 12pcs  F5  IR  LED
Water Proof Rating IP66
Operation Temp. Temp. -15 Celsius to 50 Celsius  RH 85% Max
Dimension  69mm(D) x 55.5 mm(H)
Weight 0.95LBS
