4CH 1080N AHD DVR 720P CCTV System 1.0MP IR Night Vision Indoor Outdoor Camera Home Security Video Surveillance Kit

Short Description:

Send email to us

Product Detail

FAQ

Product Tags

Overview

Quick Details

Warranty:: 1 Year

Sensor:: CMOS

Network:: TCP

Function:: Waterproof / Weatherproof, NIGHT VISION

Data Storage Options:: DVR

Application:: Outdoor

Customized support:: Customized logo

Place of Origin:: Guangdong, China

Brand Name:: sunivision/OEM

Model Number:: AP-401

Video Compression Format:: H.264

Certification:: ce, FCC, RoHS, Reach

Resolution:: 1280 X 720

Special Features:: NIGHT VISION, Waterproof / Weatherproof

waterproof:

IP66

DVR:

H.264

Camera:

IR waterproof camera

Keyword:

Security Surveillance System

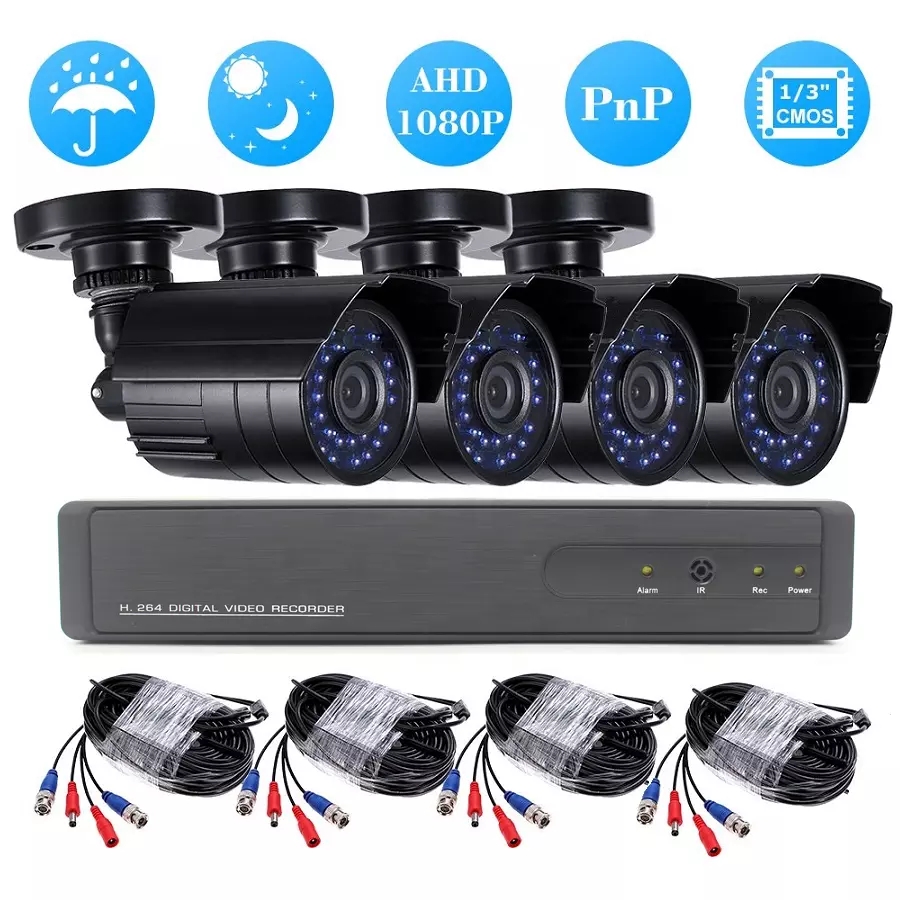

4CH 1080N AHD DVR 720P CCTV System 1.0MP IR Night Vision Indoor Outdoor Camera Home Security Video Surveillance Kit

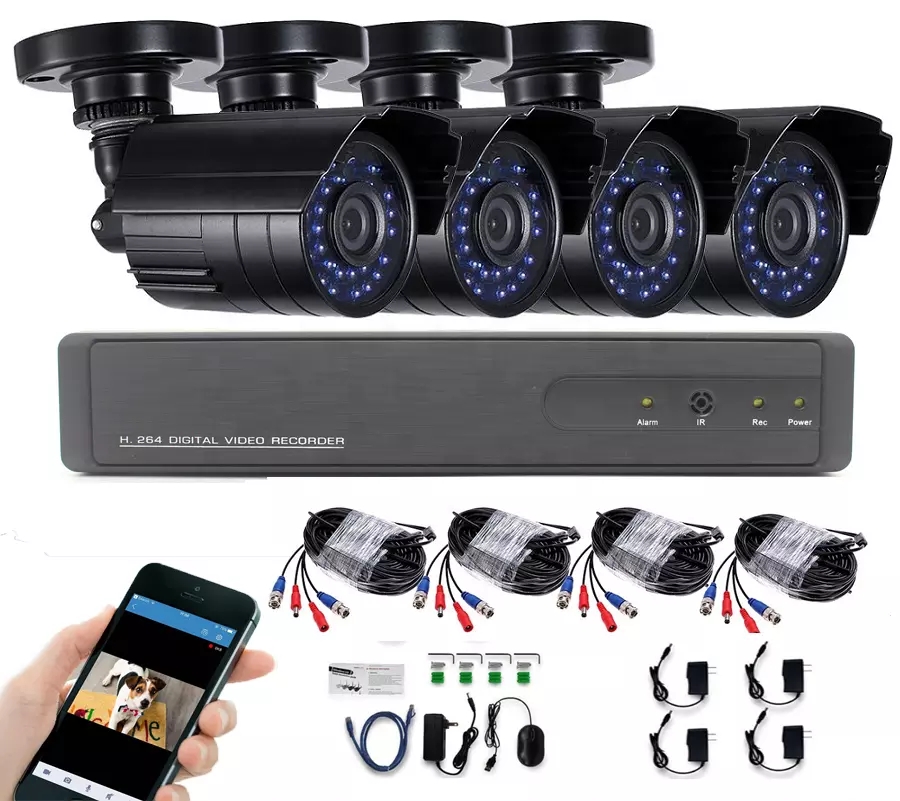

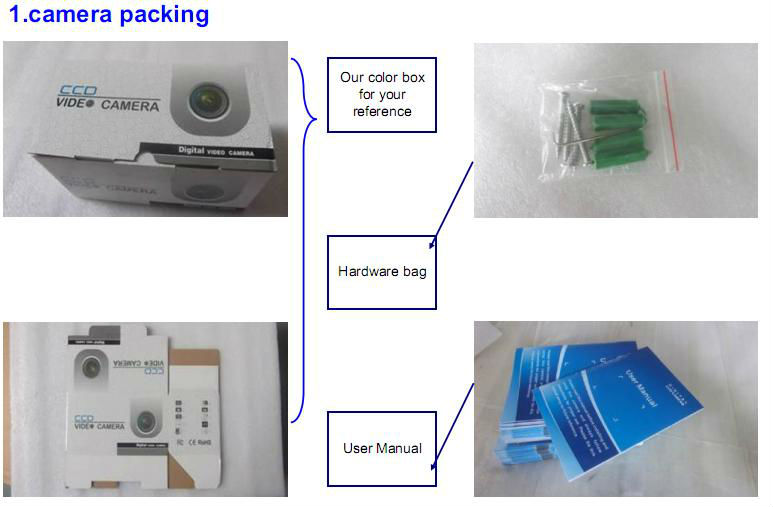

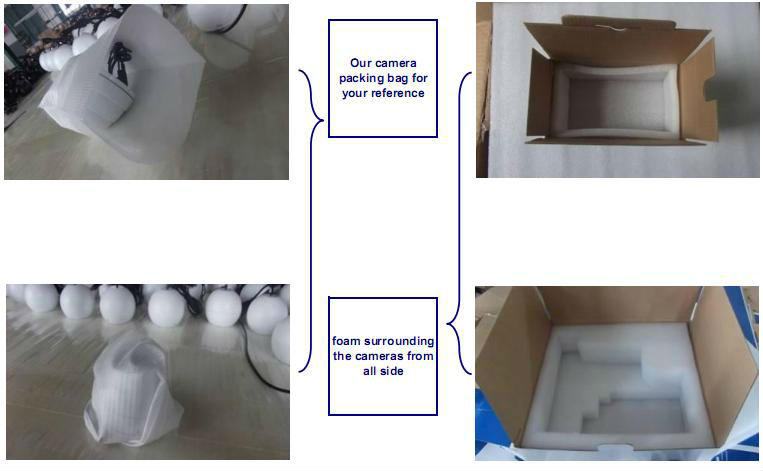

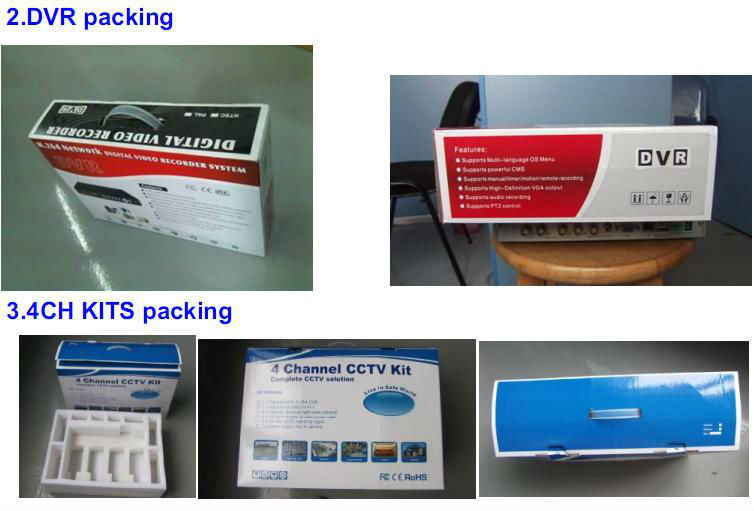

Packing detail

4pcs metal bullet camera 1080p 36pcs IR leds
1pc   4CH 1080N DVR with VGA, cctv support mobile monitor
4pcs 18meter(65ft) video+power Cable
1pc   Power supply for 4 camera 12V DC 3A
1pc   1 metre crossed network patch lead
1pc   BNC to TV connector
1pc   DVR mouse
1pc   DVR remote control
4pcs CCTV Sign

DVR Specification:

4CH DVR; Support Remote Control by IE, Iphone, Android, Symbian, BlackBerry and Mobile System
H.264 compression; Video Input/Output:4CH/1CH; Audio Input/Output:1CH/1CH; With VGA output
Display Frame Rate:NTSC:120fps/ PAL:100fps
Recording Frame Rate:NTSC:120fps / PAL:100fps
Support 1pc 6T SATA HDD;
Support 1080N realtime recording.
PLAYBACK synchronously MAX: 4CH;
With CMS central control software
Support PTZ control via built-in RS-485 port

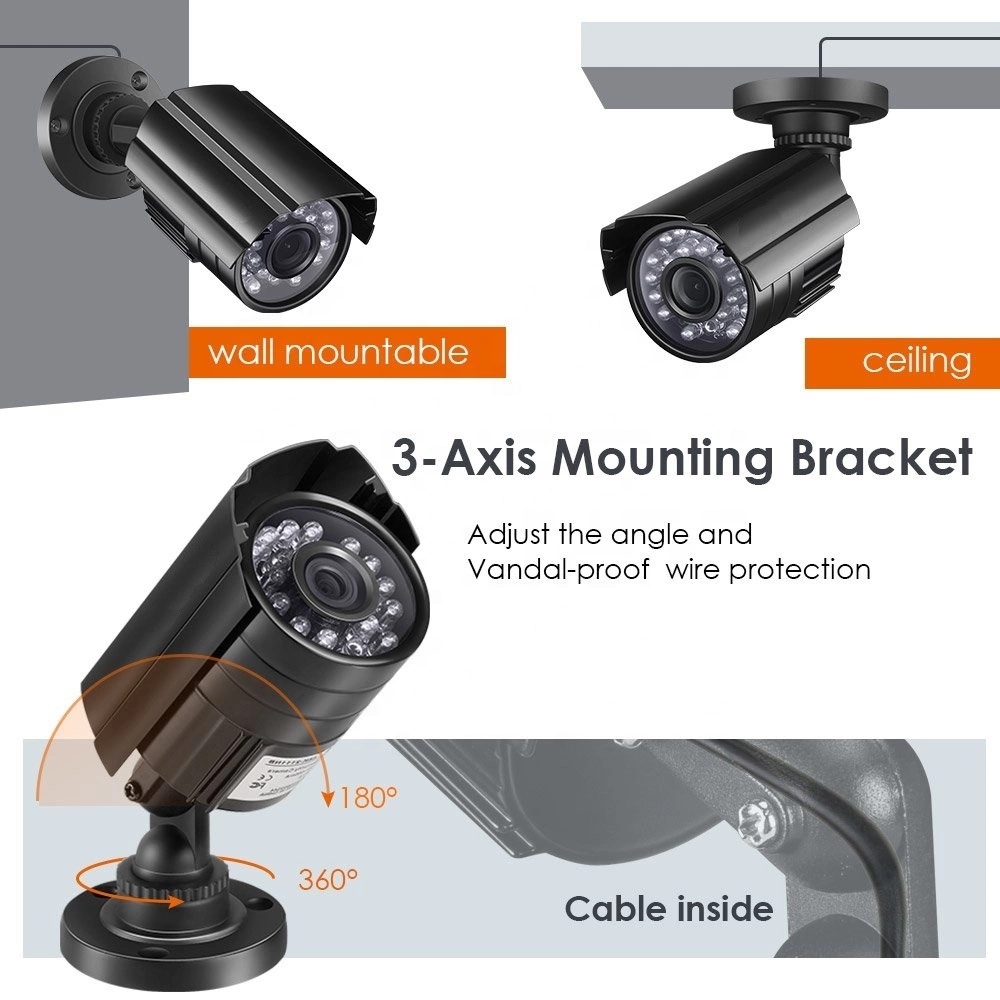

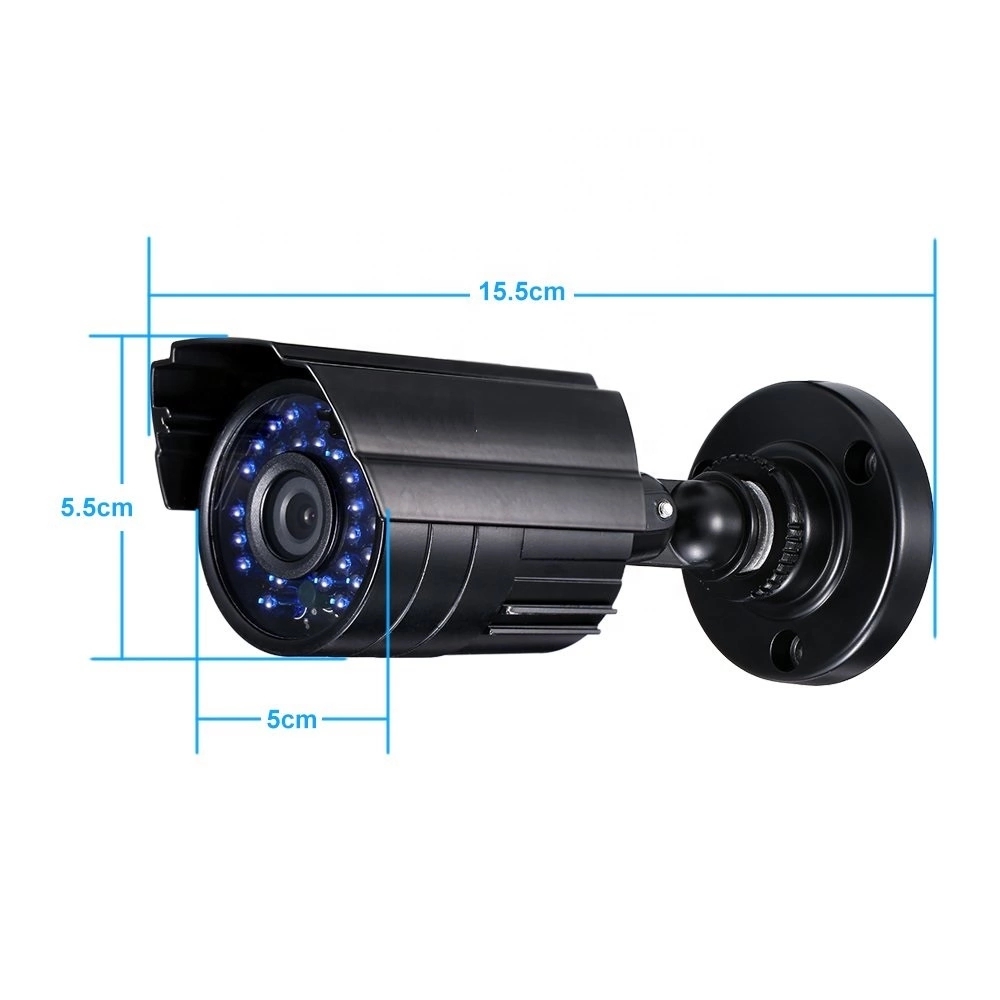

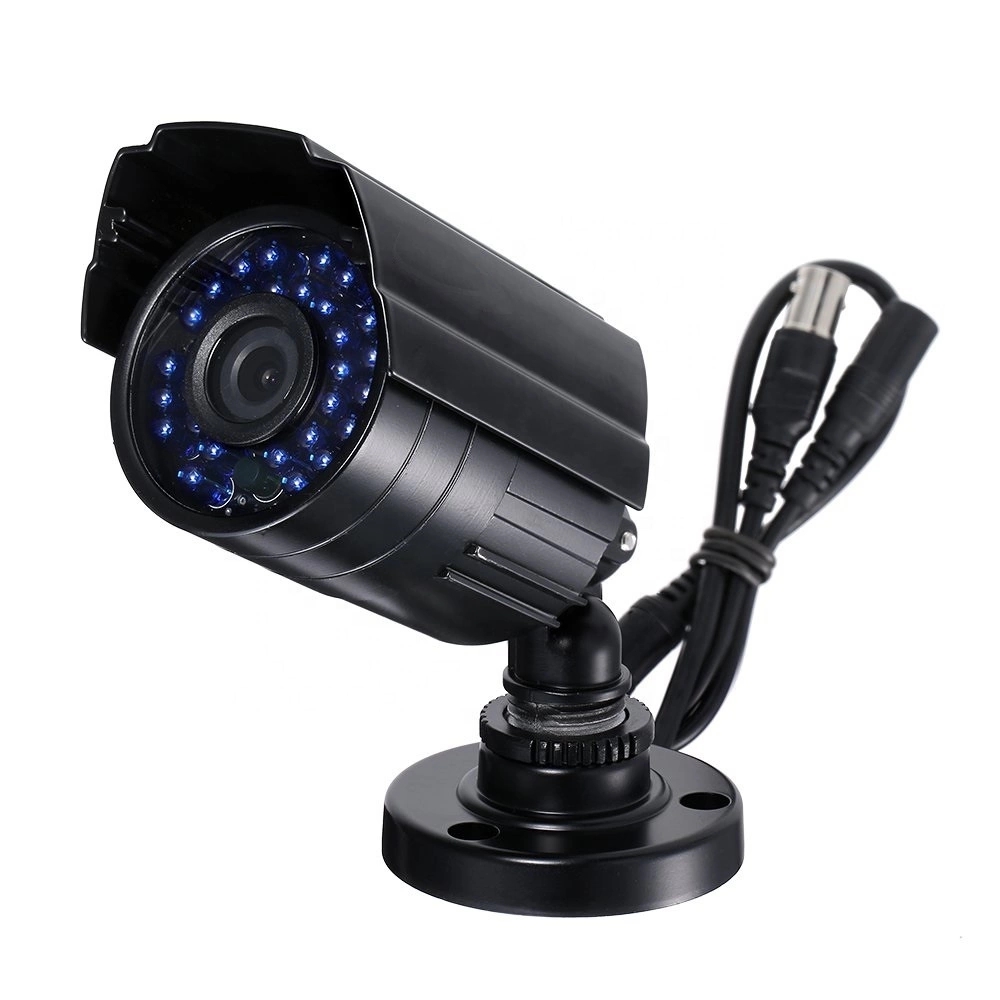

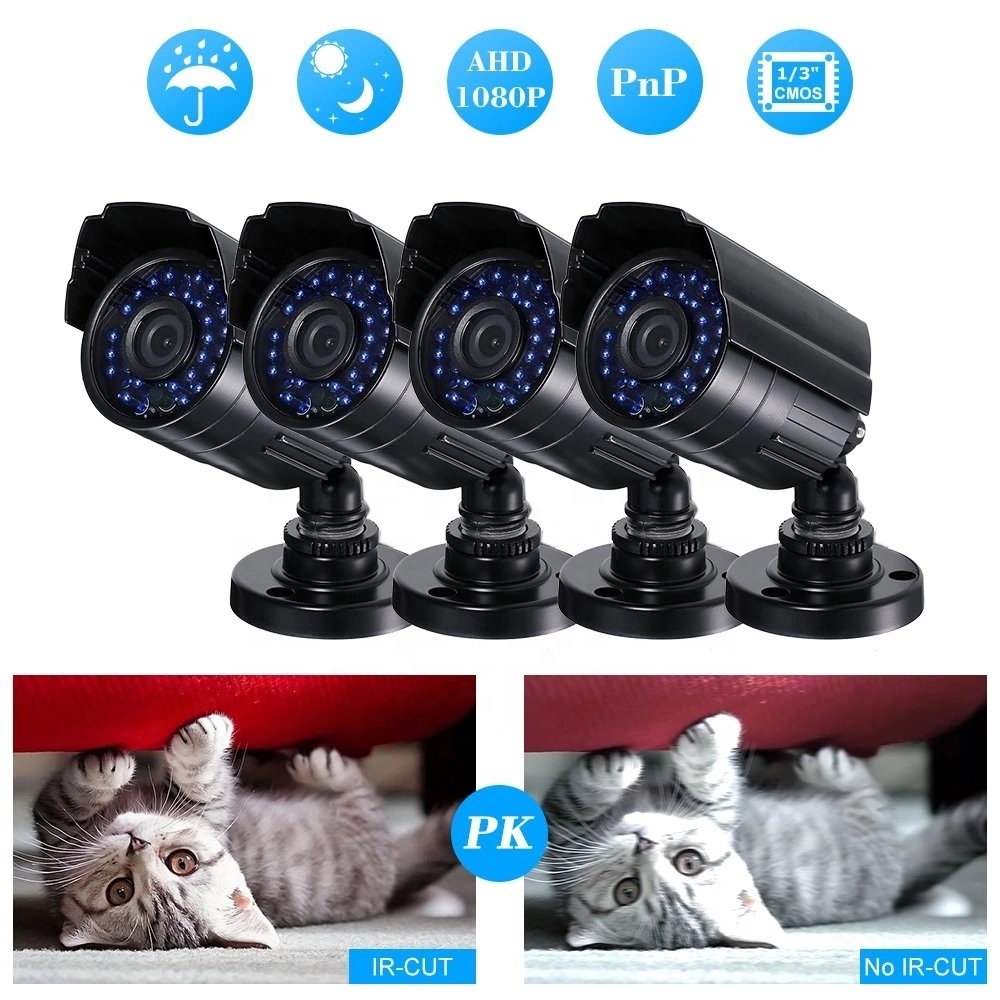

Camera Specifications:

MODEL		AP-1583
Image Device	1080P
Effective Pixel	*19201080P**
Resolution	1080P
Sync. System	Internal
Minimum Illumination	0LUX(IR ON)
S/N Ratio	no less than 48dB
Gain Control	Auto
White Balance	Auto(2500degree K~9500degree K)
Electronic Shutter	Auto E Shutter:1/60(1/50)~1/100000 Sec
Back light Compensation	AUTO
Lens Mount Type	3.6mm
IR LEDS		36pcs
IR Distance	36m
AGC	AUTO
Smart Light Control	YES
IP Rating	IP66
Video Output	1.0Vp-p,75Ω
Power Consumption	300mA
Power Supply	DC12V
Operation Temp	-10~+50degree

Welcome to buy samples for testing!

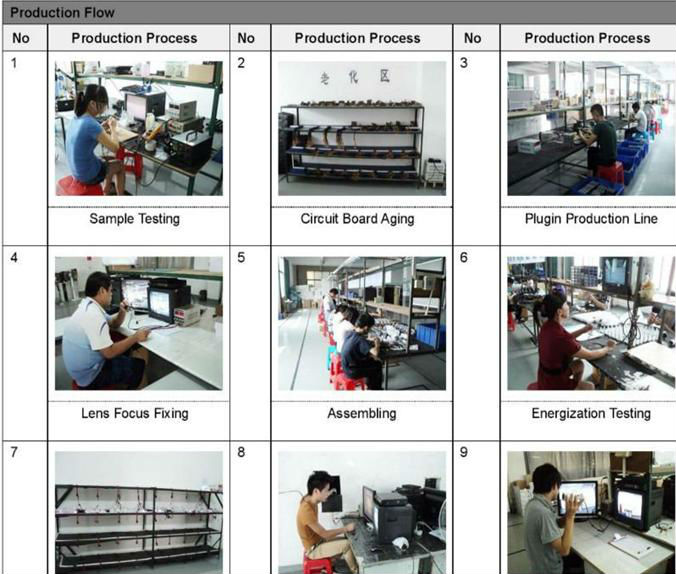

Our Company :

Sunivision Technology Development Company Limited is the leading professional manufacturer for camera cctv, dvr in China. We export camera cctv to all of the world, over one hundred of countries. Our camera cctv enjoy a very good fame among our customers for stable performance.

We have 5 professional engineers for R&D camera cctv. All the camera cctv software is developed by ourselves according to customer’s special requirement for color, brightness, lux. We could provide different layout of the camera cctv board for different customers.
