Products
8CH AHD /TVI /CVI /IP CVBS 5 in 1 XVR 1080N CCTV DVR xmeye app
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
sunivsision / OEM/ ODM
- Model Number:
-
AP-AVR2604A10_LT
- Main Processor:
-
HI3515
- Video Input:
-
8channel
- Video Output:
-
1 channel TV output BNC,1.0Vp-p,75Ω,1 VGA output
- Net Interface:
-
RJ-45 (10M/100M)
- USB Interface:
-
2*USB2.0 ports
- Hard Disk:
-
1 SATA port(Max 2048G)
- Audio Compression:
-
G711A
- Encode capacity:
-
100/120fps(D1)
- Motion Detection:
-
Zones:192(16*12)detection zones
- Power Supply:
-
12V/1.5A
Features:
- H.264 main profile compression algorithm ideal for standalone DVR
- 8channels Realtime1080N recording and real time multi channels playback
- Support TV,VGA output simultanuously

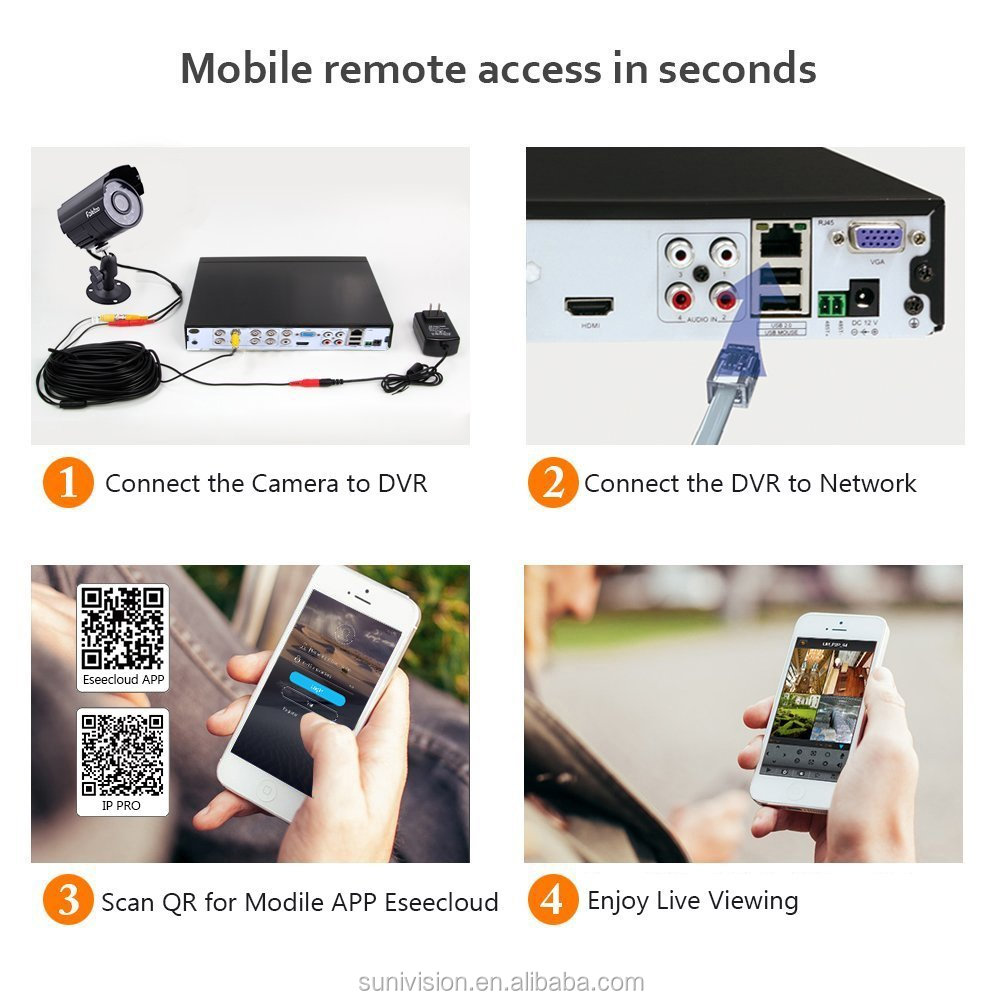

- Support Network and mobile remotely monitoring such as iPhone, Blackberry, Android, Symbian and Windows mobile
- Multiple control methods:front panel,IR remote controller,USB mouse
- port for mouse,backup,,movable hard disk,upgrade etc…
- Alarm triggering screen tips,buzzer,email &FTP upload
- Smart HDDs Management:non-working HDD hibernationg,HDD faulty alarm,Raid function
- Powerful network software:built-in web server,multi-DVR client &SMS Networking access for remote live viewing,recording,playback,setting,system statu,event log,email & ftp function
- Support DHCP / PPPOE / FTP / DNS / DDNS / NTP / Email alarm / IP right management / IP search / network alarm center functions, support WEB client, standalone client and SDK
- With the sound system for the protection circuit, unique triple watchdog function, very low power consumption, to ensure the equipment never be hang up
- Support 15 kinds of languages such as English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, S-Chinese, T-Chinese and Turkish
|
System |
Model |
AP-2308A10_VH |
|
Main Processor |
High performance embedded microprocessor HI3515 |
|
|
Operating System |
Embedded LINUX |
|
|
System Resources |
Pentaplex function:live,recording,playback,backup & remote access |
|
|
User Interface |
GUI,on-screen menu tips |
|
|
Display |
1/4 |
|
|
Video |
Video Standards |
PAL 625 line,50 f/s;NTSC 525 line,60 f/s |
|
Video Compression |
H.264 main profile |
|
|
Video Recording |
D1:PAL 1f/s-25f/s NTSC 1f/s-30f/s |
|
|
Encode capacity |
100/120fps(D1) |
|
|
Motion Detection |
Zones:192(16*12)detection zones |
|
|
Audio |
Audio Compression |
G711A |
|
Bidrectional Talk |
Support |
|
|
Record & Playback |
Recording Mode |
Manual>Alarm>Video Detection>Continuous |
|
Playback |
Multi channels playback simultaneously,pause,stop,rewind,fast play, slow play,next file, previous file,repeat,shuffle,backup selection |
|
|
Search Mode |
Time/Date,Alarm,Motion Detection & exact search(accurate to second) |
|
|
Storage & Backup |
Space Occupation |
Audio 28.8MB/H ;Video 25~450 MB/H |
|
Record Storage |
Local Hard disk and Network |
|
|
Backup Mode |
Network download/movable HDD |
|
|
Interface |
Video Input |
8channel |
|
Video Output |
1 channel TV output BNC,1.0Vp-p,75Ω,1 VGA output, |
|
|
Audio Input |
4 channel |
|
|
Audio Output |
1 channel |
|
|
Alarm Input |
NO |
|
|
Relay Output |
NO |
|
|
Net Interface |
RJ-45 (10M/100M) |
|
|
PTZ Control |
YES |
|
|
USB Interface |
2 x USB2.0 |
|
|
Hard Disk |
2 SATA ports(Max 2048G) |
|
|
Environmental |
Power Supply |
12V/1.5A |
|
Power Consumption |
<10W(not include Hard disk) |
|
|
Working Temperature |
0°C-+55°C |
|
|
Working Humidity |
10%-90% |
|
|
Atmosphere Pressure |
86kpa-106kpa |
|
|
Dimension |
250 x 45x 224mm |
|
|
Weight |
2.2kg |
More Hot Sale Products:
Application:
Teamwork Shows:
Sunivision Technology Development Co.,Ltd. is a leading and professional CCTV manufacturer located in Guangzhou,
China. Sunivision was established in 2008 ,with 2000 SQUARE METER factory and 150 employees including 5 R&D
engineers and 10 person for quality control,15% of the Year Sales Volume will be put into R&D,2-5 New Products will
be come out every month!
Sunivision specializes in researching, producing and exporting CCTV Analog Cameras, AHD Camera,
Digital camera(IP Camera,CVI Camera etc.)
and Stand-alone DVRs,CVI DVR ,AHD DVR,NVR, providing the most stable digital security solutions.
Sunivision has CE & ROHS for both DVR & CCTV CAMERAS.
A. Prompt Reply
B. OEM&ODM:
- Printing logoon the camera;
- Customized camera housing;
- Customized package box
C. Fast Delivery:
2-7 working days for sample after payment cleared.
4-12 working days for medium & large order after payment cleared.
D. Payment
You can pay for order via T/T, Western Union, Paypal,L/C
E. Shipping
We have strong cooperation with DHL, TNT,UPS, Fedex.EMS. China Air post.sea
You aslo can choose you own shipping forwarder
F. After sale service:
- Any technologic problems and quality problems,you can contact us by email or by phone.
- We will do our best to help to sovle your any problems as soon as possible.
- Free repair within two years,except huma
G. Warranty:
- Free repair within two years,except human factors.
DVR Power supply:
Q.May I print our company logo on package box and camera and DVR?
A:Of course,buyer logo is welcome in our company.We have one production line for printing buyer logo.
Q.Do you provide warranty for your products?
A:Yes,we promise two years warranty for all our products.
Q.What is your method of payment?
A:Pay via T/T,Western Union,Escrow,L/C is welcome.
Q.What is Minimum Order Quantity?
A:Minimum Order Quantity is 50pcs,but sample order is welcome.
