Sunivision 8CH H.265+ 5M-N 6 IN 1 DVR Support XVI AHD TVI CVI CVBS IP Camera Onvif Support 1 SATA HDD Maximum 8TB
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
Sunivision/OEM
- Model Number:
-
AP-D2608A10_H_N
- Certification:
-
CE
- Video Compression Format:
-
H.265
- Product name:
-
8CH 5M-N 5 IN 1 DVR
- Resolution:
-
Only Analog: 8*5M-N;8*4M-N;8*1080P Only IP: 16*1080P;8*5M
- HDD:
-
1 SATA Max 8TB
- Warranty:
-
2 Years
- Type:
-
cctv DVR
- IP Camera Input:
-
16*1080P;8*5M
- Playback:
-
8*5M-N
- Keyword:
-
Hybrid Dvr Recorder
- Support camera:
-
AHD+TVI+CVI+CVBS+IP
Sunivision 8CH H.265+ 5M-N 6 IN 1 DVR Support XVI AHD TVI CVI CVBS IP Camera Onvif Support 1 SATA HDD Maximum 8TB
Feature:
| System | Main processor | Hi3520DV400 |
| Interface | Preview | 1/4/8/9 |
| Video | Codec | H.265+ |
| Monitor quality | VGA(1080P at most);cctv(1080P at most) | |
| Preview ability | 8*5M-N@12fps(6 in 1)/8*4M-N@15fps(6 in 1) 8*1080P@15fps(6 in 1)/4*1080P(6 in 1) |
|
| Encode ability | 8*5M-N@6fps(6 in 1)/8*4M-N@8fps(6 in 1) 8*1080P@8fps(6 in 1)/4*1080P@18fps(6 in 1) |
|
| Decode ability | 4*5M-N@6fps(6 in 1)/8*4M-N@8fps(6 in 1) 8*1080P@8fps(6 in 1)/4*1080P@18fps(6 in 1) |
|

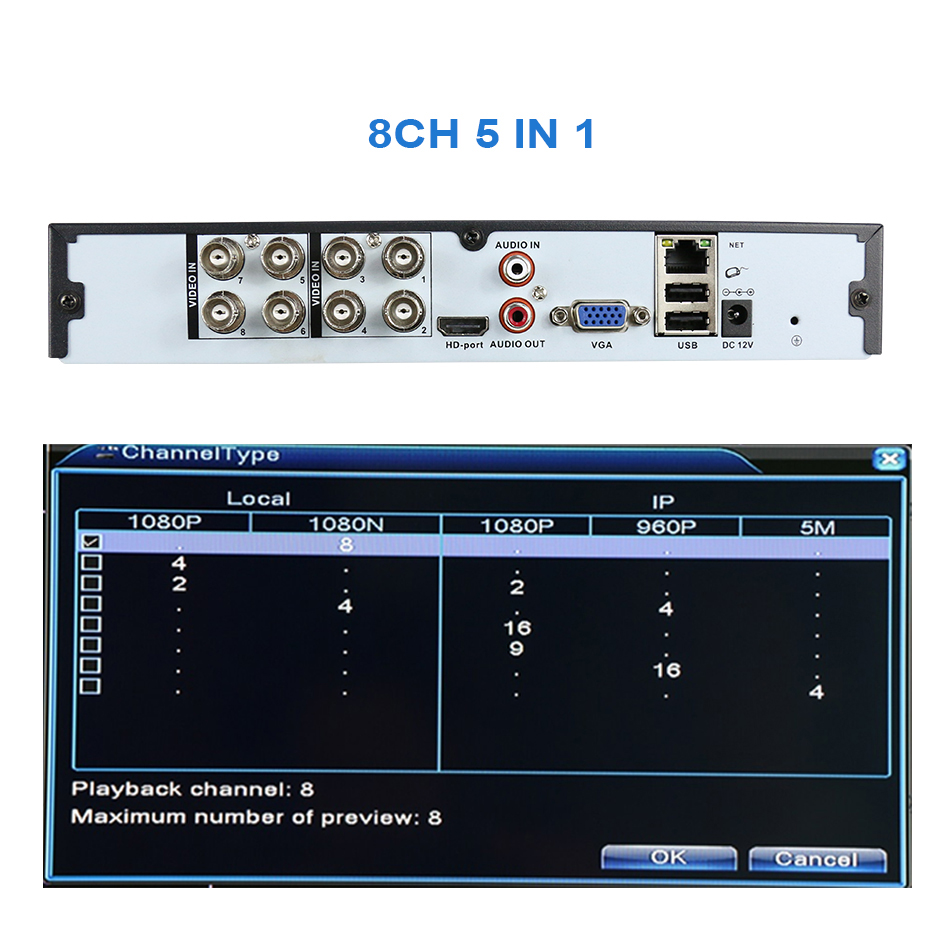

| Multi-mode input | Analog:8*4M-N;8*1080N;4*1080P Digital to analog conversion:support Network:16*1080P;8*5M |
|
| Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) |
|
| Audio | Audio compression | G.711A |
| Intercom | support | |
| Record & playback | Record mode | manual>alarm>motion detection>timing |
| Local Playback | 4ch(analog input mode) | |
| Search mode | Search by time, calendar, event, channel | |
| Storage & backup |
Video storage | HDD, network |
| Backup mode | Network, USB hard disk, USB burner, SATA burner | |
| External Interface | Video input | 8ch BNC |
| Video output | 1ch VGA, 1ch cctv | |
| Loop Vout | N/A | |
| Audio I/O | 1/1 | |
| Alarm I/O | 0/0 | |
| Network interface | RJ45 10M/100M self-adaption | |
| PTZ control | Support kinds of PTZ protocols |
Sunivision Technology Development Co.,Ltd. is a leading and professional CCTV manufacturer located in Guangzhou, China. Sunivision was established in 2008,with 2000 SQUARE METER factory and 150 employees including 5 R&D engineers and 10 person for quality control,15% of the Year Sales Volume will be put into R&D,2-5 New Products will be come out every month!
Sunivision specialize in researching, producing and exporting HD Coaxial Camera /Network Cameras /WIFI cameras / Video Recorder/CCTV KIT/ PTZ Cameras, providing the most stable digital security solutions. We have 4 production line with Production Capacity 1000PCS PER Day,30000PCS PER Month.
Entitled to many international certifications such as CE, FCC, RoHS, our products are sold to more than 1,000 business partners from over 80 countries with high reputation.Such as USA,Canada,Poland, Mexico,Columbia,Brazil,Peru,Poland,UK,Italy,Spain ……
To control the quality, we do very strict inspection at every production process. Like camera production, totally 12 steps inspection,All of them are 100% inspection 24 hours aging,.picture quality testing(color/focus/white corner/night vision)
We also do series of improvements: We have started to use ERP system to control our whole factory operations to make every process be standard; we have passed ISO9001:2008 to get our quality control be systematized; All our products have 2 years Warranty!
Technology Innovation, Absolute-advantage CCTV products, Considerate Customer Service is our target to establish win-win cooperation with our customers. With our company’s managing principle “Open, share, thanksgiving and grow” Choose Sunivision,Live in the safe world!
Packaging
Sunivision CCTV camera standard package.
Your box (MOQ 500 pcs ) designed welcome!
Warranty
2 years, products with your own logo or without logo
Shipment
1. By TNT, DHL, UPS or FedEx
2. By our forwarding agent (by air or by sea);
3. By your own forwarding agent
4. By domestic forwarding agents to any city in China.
Leadtime
1. Sample orders will be delivered from our factory within 5 working days.
2. General orders will be delivered from our factory within 12 working days.
3. Big orders will be delivered from our factory within 15 working days at most.
(Detail) Chat with me!
Q.May I print our company logo on package box and camera and DVR?
A:Of course,buyer logo is welcome in our company.We have one production line for printing buyer logo.
Q.Do you provide warranty for your products?
A:Yes,we promise two years warranty for all our products.
Q.What is your method of payment?
A: T/T, Paypal, Western Union, MoneyGram, L/C is welcome, Alibaba Trade Assurance order welcomed.
Q.What is Minimum Order Quantity?
A:Minimum Order Quantity is 20pcs,but sample order is welcome.
