China Tuya Smart Life 2MP Waterproof Outdoor Security System IP CCTV Camera Kit 8CH Nvr Kit Manufacture and Factory

Tuya Smart Life 2MP Waterproof Outdoor Security System IP CCTV Camera Kit 8CH Nvr Kit

Short Description:

Send email to us

Product Detail

FAQ

Product Tags

Overview

Quick Details

Warranty:: 2 years free repairing

Sensor:: CMOS

Network:: wifi, Ip

Function:: Waterproof / Weatherproof, NIGHT VISION, RESET

Data Storage Options:: Full HD, Cloud, NVR

Application:: Indoor, Outdoor

Customized support:: Online technical support, Customized logo, OEM, ODM, Software reengineering

Place of Origin:: Guangdong, China

Brand Name:: Sunivision/OEM/ HSX

Model Number:: AP-9208

Video Compression Format:: H.264

Certification:: ce, RoHS

Resolution:: 1920 x 1080, 1080P

Special Features:: NIGHT VISION, Waterproof / Weatherproof, Waterproof / Weatherproof

Type:

tuya nvr kit in wifi kit

Feature:

Waterproof / Weatherproof

WIFI Range:

max 120m(open filed)

NVR:

8ch WIFI NVR 2MP

Name:

nvr wifi kit

P2P:

YES

pixel:

2 Mega Pixels Camera

APP:

TUYA SMART/ SMART LIFE

Tuya Smart Life 2MP Waterproof Outdoor Security System IP CCTV Camera Kit 8CH Nvr Kit

Key Features

Features:

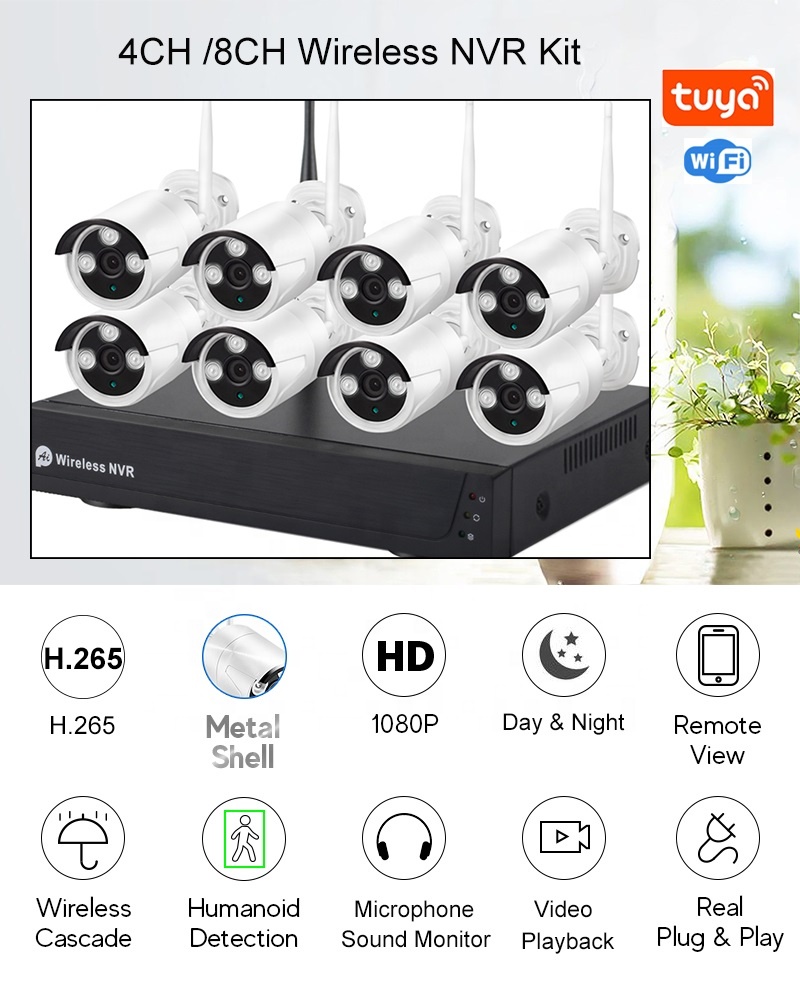

*Consist of 8CH 1080P HD WiFi NVR + 8pcs 1080P 2.0MP Wireless WiFi Waterproof Outdoor Bullet IP Camera.
*Support P2P, waterproof, IR night view, remote playback.
*Enhanced WiFi antennas, stronger signal.
*Remote view on mobile phone anywhere anytime.
*Motion detection record and phone alarm notification.

NVR Specifications:
Operating System: Embedded Linux
Video compression: H.265 High Profile/ H.264 Main Profile
Video output: 720P, XGA, 1080P
Video input(IP): 4*1080P/4*960P/4*720P
Audio compression: G.711
intercom: None
Recording mode: Manual/Alarm/Video Detection/Continuous
Local Playback: 1*1080P
Record Storage: network
Backup mode: Network backup, USB hard disk
Protocol: TCP/IP,HTTP,DHCP,UDP,RTP,RTSP,FTP,NTP,ON VIF,SADP,P2P
Distance: ≥800m(without obstacle), ≥30m(penetrate the wall)
actual transmission distance depends on the situation
Video output: 1ch HD, 1ch VGA output
Audio I/O: None
Alarm I/O: None
Network interface: 1*RJ45 10M/100M Adaptive Ethernet port
WiFi Protocol: 802.11b/g/n
APP Support: Tuya for Android/iOS OS phone/pad
USB: 2*USB 2.0 port
Hard disk: 3.5inch SATA(Up to 4TB, not included)
Power Supply: DC 12V/2A
Power Consumption: 5W(Without HDD)
NVR Size: Approx. 25.6*21.5*4.2cm

Camera Specifications:
Power Supply: DC 12V/1A
Image Sensor:1/2.9″ Color CMOS Sensor
Mega Pixel: 2.0MP
Resolution: 1920*1080
Lens: 4mm
Horizontal field of view: 75°
IR Lamps: 4pcs
Low Lux: Color: 0.01Lux B/W: 0.001 Lux
Image Compression: H.264
IR Distance: up to 30m
Ethernet: RJ-45 Interface
Mobile Phone Monitor: Android/IOS
White Balance: Auto/Manual
WIFI: Support
WiFi Protocol: 802.11b/g/n
Waterproof Grade: IP66
Camera Size: Approx. 10.2*6.7*14cm(L*W*H)
Camera Weight: Approx. 218g/7.7oz

Package Information:
Package Size: Approx. 28.5 * 26 * 16cm/11.2*10.2*6.3in
Package Weight: Approx. 2426g/5.35lb

Package List:
1* 8CH 1080P NVR(HDD not included)
8* 1080P IP Camera
8* Camera Antennas
5* EU/US Plug Power Supply
1* USB Mouse
1* Network Cable
8* Bag of Mounting Screws
1* User Manual(English)
